IMD Mold Injection Molding Decoration ABS Panel Window And Structure

10K pcs
MOQ
$10.3/pcs
Price
IMD Mold Injection Molding Decoration ABS Panel Window And Structure
Features Gallery Product Description Request A Quote
Features
Specifications
Surface Finish: High Gloss Or Matte
Advantage: All In One Solution
Material: Pc + Pet
Plastic Modling Type: Injection,form Mold, Cut Mold
Process: In Mold Decoration
Logo: Various Patterns And Colors Can Be Customized And Never Fade
Highlight:

IMD Mold Injection Molding

,

Mold Injection Molding Decoration

Basic Infomation
Place of Origin: SHENZHEN,CHINA
Brand Name: HXSIMD
Certification: ISO9001/ISO14001/ISO16949/45001
Model Number: IMD-123
Payment & Shipping Terms
Packaging Details: Packaging methods that prevent crushing, moisture, and high temperatures
Delivery Time: 12 work days
Payment Terms: T/T
Supply Ability: 3000 Pieces per Day
Product Description

IMD Panel ABS material window and structure integrated in mold injection molding decoration



IMD Panel product features:

One of the most obvious features of the IMD panel is that the structure of the window and non window, as well as the gong wire column on the back, can be integrated and come out of a single injection mold. This way, it not only has the function of a lens, but also has the advantages of the IMD process, while also bringing convenience to component installation. Forming a complete accessory, the waterproof level is also the highest. If there is a requirement for fire protection, the fire protection level can also reach V0 level. The in mold injection molding decoration process is usually used for high-end product accessories, with much higher requirements for appearance and quality than ordinary market processes. There are too many gameplay options for this craft, which has its unique advantages.



IMD Panel Product Properties:

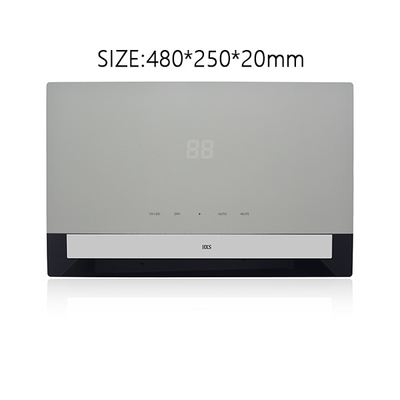

Product size 480*250*20mm
Product material PC+PET
Product unit price $10.3
MOQ 10K pcs
Mold Type Injection mold+form mold+cut mold
Mold  time 28 Work Days
Mold material S136
Mold Life Guaranteed warranty within 500000 times
Daily production capacity 2000  pcs
Product packaging method prevent crushing, moisture, and high temperatures



IMD Panel process introduction:

In Mold Decoration(IMD): use PET film coated on the surface as the carrier to print ink pattern layer, adhesive and ink curing on the printing surface. Then it is heated and baked for hot pressing forming and trimming. Put the shaped PET film into the injection mold cavity through manual or mechanical hand to fill the plastic, and melt the adhesive to bond the PET film with the ink pattern layer to form a whole with the plastic under high temperature.

Expansion area:

In addition to PET materials, it can also be cloth, PU leather, wood chips, bamboo chips and other sheet materials



IMD Panel  product process:

1.Sheet cutting: cut a whole roll of sheet into small pieces

2.Pre-baking: the purpose is to eliminate the stress inside the sheet and make the sheet stretch

3.Printing: print different patterns on the diaphragm

4.Ink curing: curing the ink on the sheet to make the ink highly integrated with the sheet

5.Punching: punch holes in the diaphragm to fix the diaphragm for the next process

6.Cutting: cut the diaphragm into smaller pieces

7.Diaphragm forming: mold the diaphragm into product shape

9.Edge cutting and material removal: cut off the excess edge material

10.In-mold injection molding: put the molded diaphragm into the mold of the injection molding machine to inject plastic

11.Water outlet: remove excess plastic

12.Inspection and packaging:Conduct a comprehensive inspection on the finished products to confirm that the quality is qualified, and then pack them for shipment



IMD Panel product  customization process:

1. The customer provides IMD PARTS data, including the designed three-level diagram and ID effect diagram;

2. Evaluate and confirm the drawings;

3. Both parties sign the mold contract;

4. Pay the first payment of the mold;

5. Start mold production;

6. Proofing;

7. Confirm the sample;

8. Sign order contract;

9. Pay the first payment of the order and the last payment of the mold;

10. Production;

11. Deliver the goods and pay the balance of the order at the same time



Why choose us

We are the first professional IMD PARTS manufacturer in China,Founded in 2009, the company's industrial park covers an area of more than 30000 square meters, has a high-precision dust-free workshop, and has nearly 100 excellent management personnel, 35 engineering and technical personnel, 50 quality personnel, a total of nearly 500 employees, more than 500 injection molding equipment, and a monthly production capacity of nearly 15 million pieces; From engineering research and development to mold production, diaphragm printing, diaphragm molding, diaphragm injection molding, inspection and packaging, there is a complete process production process.

IMD Mold Injection Molding Decoration ABS Panel Window And Structure 0



Full-process dust-free workshop operation

IMD Mold Injection Molding Decoration ABS Panel Window And Structure 1



Full-process dust-free workshop operation

IMD Mold Injection Molding Decoration ABS Panel Window And Structure 2



Our company has won the honors of high-growth enterprise, industry benchmark enterprise, contract-abiding and creditworthy enterprise, high-tech enterprise, etc

IMD Mold Injection Molding Decoration ABS Panel Window And Structure 3



HXS has become a long-term partner of more than ten top 100 enterprises in the world

IMD Mold Injection Molding Decoration ABS Panel Window And Structure 4



IMD Mold Injection Molding Decoration ABS Panel Window And Structure 5
