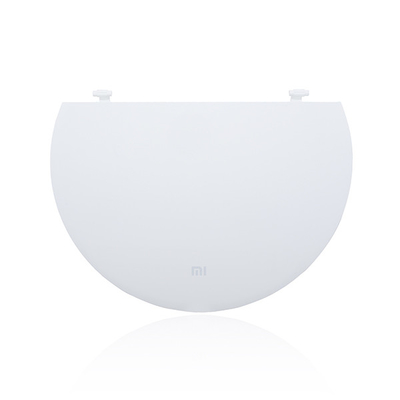

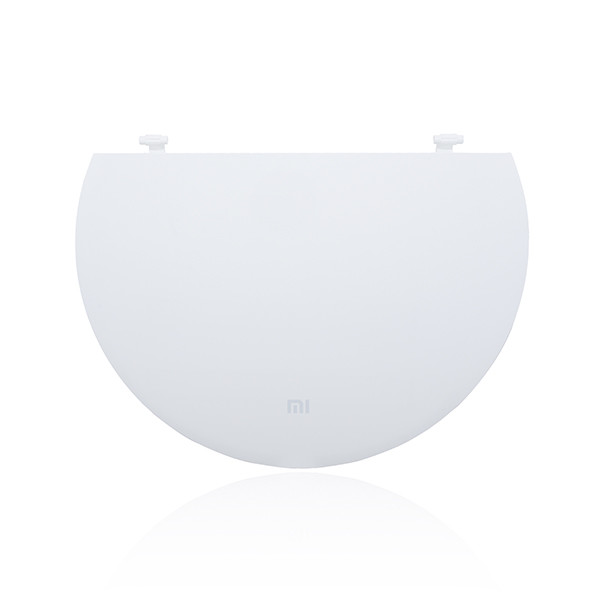

IMR Panel Broom Cover ABS+PC Material Surface PET Film Peeling Off Low Deformation
The main characteristics of the IMR process are as follows:
The outermost layer of the film produced by the IMR process is a release film, usually made of PET material.
After the completion of IMR process production, the product is separated from the base film and can form a continuous production of roll to roll.
The IMR process has stable quality, high production capacity, and fast delivery speed;
The ink coating on the surface of IMR process products is strong and not easy to peel off; It has much stronger coating force than ordinary spray products and is suitable for products with high coating force requirements;
The deformation control of IMR process products is very good, approaching the deformation degree of ordinary injection molded products.
IMD Panel Product Properties:
Product size | 320*260*30mm |
Product material | PC+ABS |
Product unit price | $5.6 |
MOQ | 10K pcs |
Mold Type | Injection mold+formming mold+cutting mold=3 |
Mold time | 28 Work Days |
Mold material | S136 |
Mold Life | Guaranteed warranty within 500000 times |
Daily production capacity | 4K pcs |
Tonnage of injection molding machine | 250T |
IMD Panel process introduction:
In Mold Decoration(IMD): use PET film coated on the surface as the carrier to print ink pattern layer, adhesive and ink curing on the printing surface. Then it is heated and baked for hot pressing forming and trimming. Put the shaped PET film into the injection mold cavity through manual or mechanical hand to fill the plastic, and melt the adhesive to bond the PET film with the ink pattern layer to form a whole with the plastic under high temperature.
Expansion area:
In addition to PET materials, it can also be cloth, PU leather, wood chips, bamboo chips and other sheet materials
IMD Panel product process:
1.Sheet cutting: cut a whole roll of sheet into small pieces
2.Pre-baking: the purpose is to eliminate the stress inside the sheet and make the sheet stretch
3.Printing: print different patterns on the diaphragm
4.Ink curing: curing the ink on the sheet to make the ink highly integrated with the sheet
5.Punching: punch holes in the diaphragm to fix the diaphragm for the next process
6.Cutting: cut the diaphragm into smaller pieces
7.Diaphragm forming: mold the diaphragm into product shape
9.Edge cutting and material removal: cut off the excess edge material
10.In-mold injection molding: put the molded diaphragm into the mold of the injection molding machine to inject plastic
11.Water outlet: remove excess plastic
12.Inspection and packaging:Conduct a comprehensive inspection on the finished products to confirm that the quality is qualified, and then pack them for shipment
IMD Panel product customization process:
1. The customer provides IMD PARTS data, including the designed three-level diagram and ID effect diagram;
2. Evaluate and confirm the drawings;
3. Both parties sign the mold contract;
4. Pay the first payment of the mold;
5. Start mold production;
6. Proofing;
7. Confirm the sample;
8. Sign order contract;
9. Pay the first payment of the order and the last payment of the mold;
10. Production;
11. Deliver the goods and pay the balance of the order at the same time
