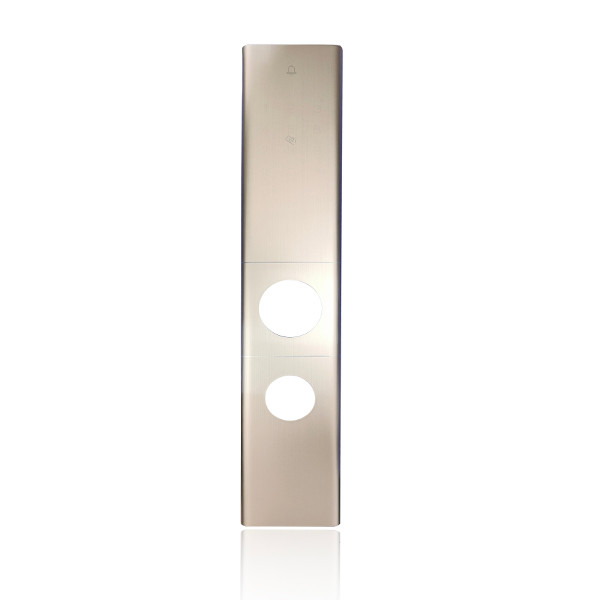

OEM Household IMD Panel Intelligent Lock Cover With Metal Wire Drawing Effect

10K pcs
MOQ
$7.3/pcs
Price
OEM Household IMD Panel Intelligent Lock Cover With Metal Wire Drawing Effect
Features Gallery Product Description Request A Quote
Features
Specifications
Surface Finish: High Gloss
Advantage: All In One Solution
Material: PC+ PET
Plastic Modling Type: Forming Mold, Cutting Mold,Injection Mold
Process: In Mold Decoration
Service: OEM / ODM
Highlight:

Household IMD Panel

,

OEM IMD Panel

Basic Infomation
Place of Origin: SHENZHEN,CHINA
Brand Name: HXSIMD
Certification: ISO9001/ISO14001/ISO16949/45001
Model Number: IMD-266
Payment & Shipping Terms
Packaging Details: Packaging methods that prevent crushing, moisture, and high temperatures
Delivery Time: 12 work days
Payment Terms: T/T, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 Pieces per Day
Product Description

IMD Panel Household Intelligent Lock Cover PC Material Surface Covered With PET Film Metal Wire Drawing Effect



The characteristics of IMD metal wire drawing effect are as follows:



Strong metallic feeling: The anodized aluminum wire drawing metal surface has high hardness, good scratch resistance, and no paint coverage on the surface, retaining the original metallic color of the metal wire drawing, highlighting the modern metallic feeling, and improving the grade and added value of the metal wire drawing products.

Good processability: Metal wire drawing has strong decorative properties, moderate hardness, and can be easily bent into shape. Related enterprises use continuous high-speed stamping of metal wire drawing to directly process products without the need for complex surface treatment, greatly reducing product production cycles and reducing production costs.

Good weather resistance: The metal wire drawing process does not change color, corrode, oxidize, or rust when used indoors for a long time. The metal wire drawing process can also be used outdoors and will not change color after long-term exposure to sunlight.

Strong applicability: Metal wire drawing has a wide range of uses, suitable for metal wire drawing decorative panels, curtain wall panels, fireproof panels, electrical panels, cabinet panels, and furniture panels.

Strong stain resistance: The metal wire drawing process does not leave fingerprints, does not have stains, is easy to clean, and does not produce corrosion spots.



IMD Panel Product Properties:

Product size 380*80*30mm
Product material ABS+PET
Product unit price $1.5
MOQ 10K pcs
Mold Type Injection mold+formming mold+cutting mold=3
Mold  time 28 Work Days
Mold material S136
Mold Life Guaranteed warranty within 500000 times
Daily production capacity 4K pcs
Tonnage of injection molding machine 120T



IMD Panel process introduction:

In Mold Decoration(IMD): use PET film coated on the surface as the carrier to print ink pattern layer, adhesive and ink curing on the printing surface. Then it is heated and baked for hot pressing forming and trimming. Put the shaped PET film into the injection mold cavity through manual or mechanical hand to fill the plastic, and melt the adhesive to bond the PET film with the ink pattern layer to form a whole with the plastic under high temperature.

Expansion area:

In addition to PET materials, it can also be cloth, PU leather, wood chips, bamboo chips and other sheet materials



IMD Panel  product process:

1.Sheet cutting: cut a whole roll of sheet into small pieces

2.Pre-baking: the purpose is to eliminate the stress inside the sheet and make the sheet stretch

3.Printing: print different patterns on the diaphragm

4.Ink curing: curing the ink on the sheet to make the ink highly integrated with the sheet

5.Punching: punch holes in the diaphragm to fix the diaphragm for the next process

6.Cutting: cut the diaphragm into smaller pieces

7.Diaphragm forming: mold the diaphragm into product shape

9.Edge cutting and material removal: cut off the excess edge material

10.In-mold injection molding: put the molded diaphragm into the mold of the injection molding machine to inject plastic

11.Water outlet: remove excess plastic

12.Inspection and packaging:Conduct a comprehensive inspection on the finished products to confirm that the quality is qualified, and then pack them for shipment



IMD Panel product  customization process:

1. The customer provides IMD PARTS data, including the designed three-level diagram and ID effect diagram;

2. Evaluate and confirm the drawings;

3. Both parties sign the mold contract;

4. Pay the first payment of the mold;

5. Start mold production;

6. Proofing;

7. Confirm the sample;

8. Sign order contract;

9. Pay the first payment of the order and the last payment of the mold;

10. Production;

11. Deliver the goods and pay the balance of the order at the same time



Why choose us

We are the first professional IMD PARTS manufacturer in China,Founded in 2009, the company's industrial park covers an area of more than 30000 square meters, has a high-precision dust-free workshop, and has nearly 100 excellent management personnel, 35 engineering and technical personnel, 50 quality personnel, a total of nearly 500 employees, more than 500 injection molding equipment, and a monthly production capacity of nearly 15 million pieces; From engineering research and development to mold production, diaphragm printing, diaphragm molding, diaphragm injection molding, inspection and packaging, there is a complete process production process.

OEM Household IMD Panel Intelligent Lock Cover With Metal Wire Drawing Effect 0



Full-process dust-free workshop operation

OEM Household IMD Panel Intelligent Lock Cover With Metal Wire Drawing Effect 1



Full-process dust-free workshop operation

OEM Household IMD Panel Intelligent Lock Cover With Metal Wire Drawing Effect 2



Our company has won the honors of high-growth enterprise, industry benchmark enterprise, contract-abiding and creditworthy enterprise, high-tech enterprise, etc

OEM Household IMD Panel Intelligent Lock Cover With Metal Wire Drawing Effect 3



HXS has become a long-term partner of more than ten top 100 enterprises in the world

OEM Household IMD Panel Intelligent Lock Cover With Metal Wire Drawing Effect 4



OEM Household IMD Panel Intelligent Lock Cover With Metal Wire Drawing Effect 5
