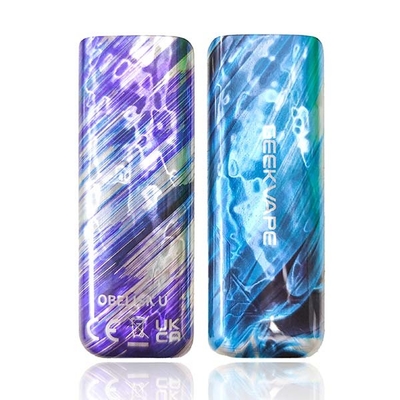

3D UV Texture High Pressure Molding Process PMMA+PC Material

10K pcs
3D UV Texture High Pressure Molding Process PMMA+PC Material
Features Gallery Product Description Request A Quote
Surface Finish: High Gloss
Advantage: All In One Solution
Material: PC+PMMA
Plastic Modling Type: Form Mold+CNC
Process: Appearance Decoration
Logo: Various Patterns And Colors Can Be Customized And Never Fade

UV Texture High Pressure Molding Process


High Pressure Molding Process PMMA

Basic Infomation
Place of Origin: SHENZHEN,CHINA
Brand Name: HXSIMD
Certification: ISO9001/ISO14001/ISO16949/45001
Model Number: IMD-254
Payment & Shipping Terms
Packaging Details: Packaging methods that prevent crushing, moisture, and high temperatures
Delivery Time: 12 work days
Payment Terms: T/T, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 Pieces per Day
Product Description

PC+PMMA Material High-Pressure 3D Molding Process With UV Texture And Color Patterns

PC/PMMA composite materials also have the following advantages:


Excellent transparency: PC/PMMA composite material has high transparency

Flame retardant and fire-resistant: PC is a flame retardant material, a Class B flame retardant (international UL94-V2), a self-extinguishing plastic that is not easy to burn, and PMMA is not easy to burn flame retardant.

Impact resistance, crushing resistance, and strength indicators: Under the same thickness, the impact strength of PC is 30-50 times that of PMMA. PC thick plates starting from 6mm are bulletproof materials, and ordinary adults with 3mm PC plates will not be crushed by a hammer.

Heat resistance, temperature resistance, and weather resistance: When PMMA reaches 70 degrees, it is easy to soften, while PC is 120 degrees, making it more heat-resistant and heat-resistant. The working temperature of PC has been widely used.

Environmental protection: PC is an environmentally friendly plastic, while PMMA has certain physical properties.

Excellent lifting performance enables it to create a 3D three-dimensional appearance

Can print complex and high-precision patterns for excellent appearance


Product Properties:

Product size 48*20*4mm
Product material PC+PMMA
Product unit price $0.9
MOQ 10K pcs
Mold Type form mold
Mold  time 15 Work Days
Mold material D2
Mold Life Guaranteed warranty within 500000 times
Daily production capacity 4000  pcs
Product packaging method prevent crushing, moisture, and high temperatures


In Mold Decoration process introduction:

In Mold Decoration(IMD): use PET film coated on the surface as the carrier to print ink pattern layer, adhesive and ink curing on the printing surface. Then it is heated and baked for hot pressing forming and trimming. Put the shaped PET film into the injection mold cavity through manual or mechanical hand to fill the plastic, and melt the adhesive to bond the PET film with the ink pattern layer to form a whole with the plastic under high temperature.

Expansion area:

In addition to PET materials, it can also be cloth, PU leather, wood chips, bamboo chips and other sheet materials


In Mold Decoration  product process:

1.Sheet cutting: cut a whole roll of sheet into small pieces

2.Pre-baking: the purpose is to eliminate the stress inside the sheet and make the sheet stretch

3.Printing: print different patterns on the diaphragm

4.Ink curing: curing the ink on the sheet to make the ink highly integrated with the sheet

5.Punching: punch holes in the diaphragm to fix the diaphragm for the next process

6.Cutting: cut the diaphragm into smaller pieces

7.Diaphragm forming: mold the diaphragm into product shape

9.Edge cutting and material removal: cut off the excess edge material

10.In-mold injection molding: put the molded diaphragm into the mold of the injection molding machine to inject plastic

11.Water outlet: remove excess plastic

12.Inspection and packaging:Conduct a comprehensive inspection on the finished products to confirm that the quality is qualified, and then pack them for shipment


In Mold Decoration product  customization process:

1. The customer provides IMD PARTS data, including the designed three-level diagram and ID effect diagram;

2. Evaluate and confirm the drawings;

3. Both parties sign the mold contract;

4. Pay the first payment of the mold;

5. Start mold production;

6. Proofing;

7. Confirm the sample;

8. Sign order contract;

9. Pay the first payment of the order and the last payment of the mold;

10. Production;

11. Deliver the goods and pay the balance of the order at the same time


Why choose us

We are the first professional IMD PARTS manufacturer in China,Founded in 2009, the company's industrial park covers an area of more than 30000 square meters, has a high-precision dust-free workshop, and has nearly 100 excellent management personnel, 35 engineering and technical personnel, 50 quality personnel, a total of nearly 500 employees, more than 500 injection molding equipment, and a monthly production capacity of nearly 15 million pieces; From engineering research and development to mold production, diaphragm printing, diaphragm molding, diaphragm injection molding, inspection and packaging, there is a complete process production process.

3D UV Texture High Pressure Molding Process PMMA+PC Material 0


Full-process dust-free workshop operation

3D UV Texture High Pressure Molding Process PMMA+PC Material 1


Full-process dust-free workshop operation

3D UV Texture High Pressure Molding Process PMMA+PC Material 2


Our company has won the honors of high-growth enterprise, industry benchmark enterprise, contract-abiding and creditworthy enterprise, high-tech enterprise, etc

3D UV Texture High Pressure Molding Process PMMA+PC Material 3


HXS has become a long-term partner of more than ten top 100 enterprises in the world

3D UV Texture High Pressure Molding Process PMMA+PC Material 4


3D UV Texture High Pressure Molding Process PMMA+PC Material 5
