Integrated Lens Injection Molding IMD With Full Perspective Window

10K pcs
MOQ
According to drawing requirements
Price
Integrated Lens Injection Molding IMD With Full Perspective Window
Features Gallery Product Description Request A Quote
Features
Specifications
Surface Finish: High Gloss
Advantage: All In One Solution
Material: PC + PET
Plastic Modling Type: Injection Mold+forming Mold+cutting Mold
Process: In Mold Decoration
Logo: Various Patterns And Colors Can Be Customized And Never Fade
Highlight:

Integrated Lens Injection Molding

,

Lens Injection Molding IMD

Basic Infomation
Place of Origin: SHENZHEN,CHINA
Brand Name: HXSIMD
Certification: ISO9001/ISO14001/ISO16949/45001
Model Number: IMD-127
Payment & Shipping Terms
Packaging Details: Paper box
Delivery Time: 14 work days
Payment Terms: T/T
Supply Ability: 3000 Pieces per Day
Product Description

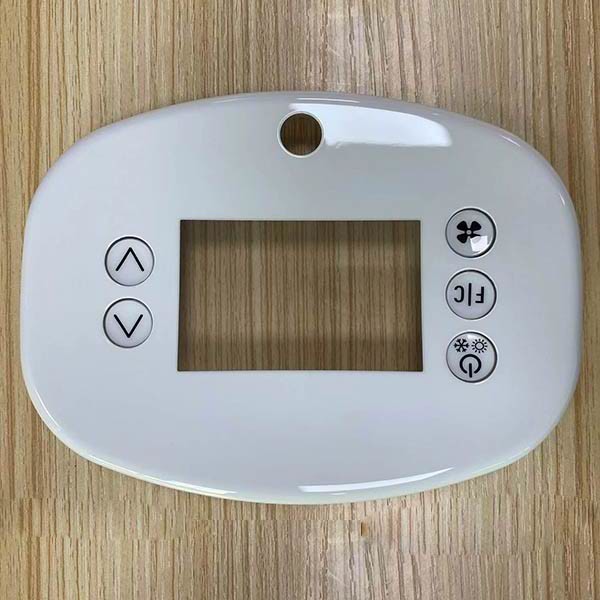

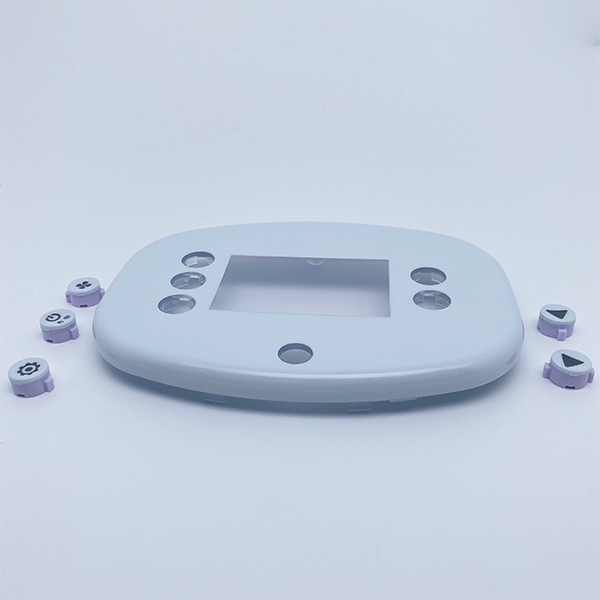

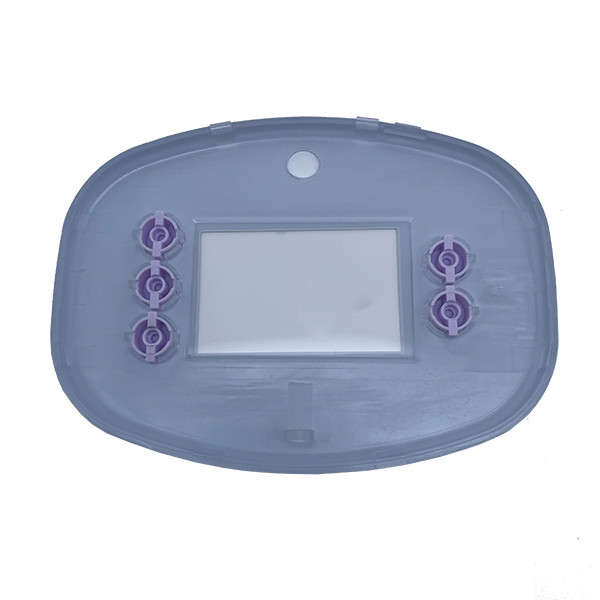

IMD Lens With Structural Integrated Molded Parts, Full Perspective Window, Injection Molded From One Mold



 IMD Lens  features:

1. The transmittance of the lens is as high as 90%

2. The parts that are not part of the lens are integrated with the lens by injection molding, saving development costs and facilitating assembly

3. The surface is not easily scratched because it is a membrane with a hardness of over 2H

4. Various logos and colors can be customized

5. The main cooperation method is OEM customization

6. Meet various environmental and export requirements



IMD Lens Properties:

Product size 130*80*20mm
Product material PC+PET
Product unit price $2.0
MOQ 10K pcs
Mold Type Injection mold+forming mold+cutting mold=3 Sets
Mold  time  22 Work Days
Mold material S136
Mold Life Guaranteed warranty within 300000 times
Daily production capacity 4000  pcs
Product packaging method Customizable according to customer requirements



IMD Lens product process:

1.Sheet cutting: cut a whole roll of sheet into small pieces

2.Pre-baking: the purpose is to eliminate the stress inside the sheet and make the sheet stretch

3.Printing: print different patterns on the diaphragm

4.Ink curing: curing the ink on the sheet to make the ink highly integrated with the sheet

5.Punching: punch holes in the diaphragm to fix the diaphragm for the next process

6.Cutting: cut the diaphragm into smaller pieces

7.Diaphragm forming: mold the diaphragm into product shape

9.Edge cutting and material removal: cut off the excess edge material

10.In-mold injection molding: put the molded diaphragm into the mold of the injection molding machine to inject plastic

11.Water outlet: remove excess plastic

12.Inspection and packaging:Conduct a comprehensive inspection on the finished products to confirm that the quality is qualified, and then pack them for shipment



Why choose us

We are the first professional IMD PARTS manufacturer in China,Founded in 2009, the company's industrial park covers an area of more than 30000 square meters, has a high-precision dust-free workshop, and has nearly 100 excellent management personnel, 35 engineering and technical personnel, 50 quality personnel, a total of nearly 500 employees, more than 500 injection molding equipment, and a monthly production capacity of nearly 15 million pieces; From engineering research and development to mold production, diaphragm printing, diaphragm molding, diaphragm injection molding, inspection and packaging, there is a complete process production process.

Integrated Lens Injection Molding IMD With Full Perspective Window 0



Full-process dust-free workshop operation

Integrated Lens Injection Molding IMD With Full Perspective Window 1



Full-process dust-free workshop operation

Integrated Lens Injection Molding IMD With Full Perspective Window 2



Our company has won the honors of high-growth enterprise, industry benchmark enterprise, contract-abiding and creditworthy enterprise, high-tech enterprise, etc

Integrated Lens Injection Molding IMD With Full Perspective Window 3



HXS has become a long-term partner of more than ten top 100 enterprises in the world

Integrated Lens Injection Molding IMD With Full Perspective Window 4



Integrated Lens Injection Molding IMD With Full Perspective Window 5
