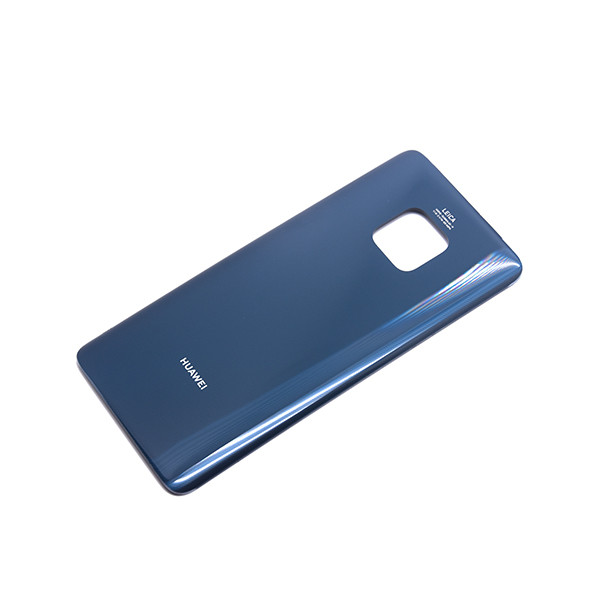

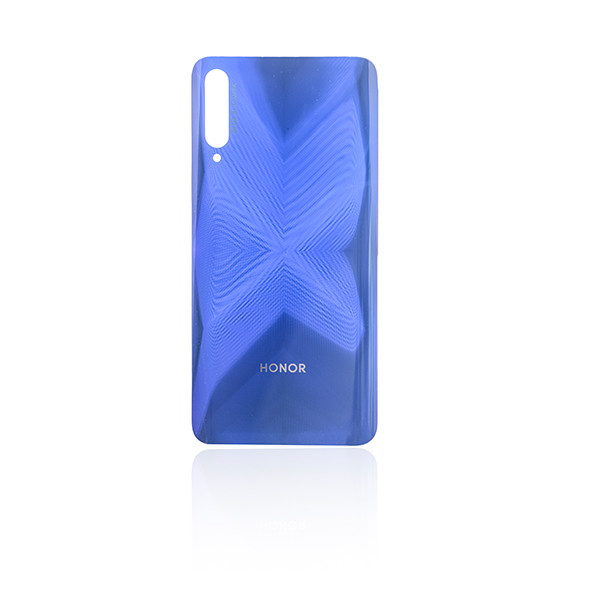

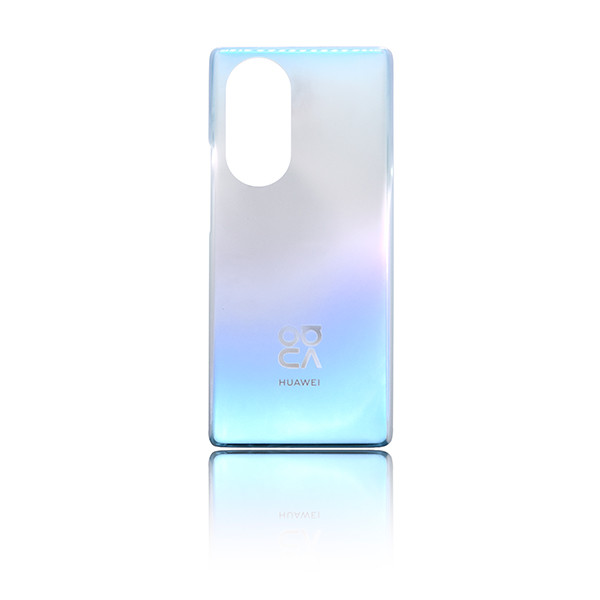

IMD Mobile Phone Back Cover Electroplating IMD Phone Case UV Texture

5000 pcs
MOQ
$3.0/pcs
Price
IMD Mobile Phone Back Cover Electroplating IMD Phone Case UV Texture
Features Gallery Product Description Request A Quote
Features
Specifications
Surface Finish: High Gloss
Advantage: All In One Solution
Material: Pc Or Abs +pet
Plastic Modling Type: Injection,form Mold, Cut Mold
Process: In Mold Decoration
Logo: Never Fade
Highlight:

IMD Mobile Phone Back Cover

,

Mobile Phone Back Cover Electroplating

,

IMD Phone Case UV Texture

Basic Infomation
Place of Origin: SHENZHEN,CHINA
Brand Name: HXSIMD
Certification: ISO9001/ISO14001/ISO16949
Model Number: IMD-1
Payment & Shipping Terms
Packaging Details: standard packing (43cm*33cm*36cm, 10KG)
Delivery Time: 12 work days
Payment Terms: T/T
Supply Ability: 3000 Pieces per Day
Product Description

IMD Printing With IMD Process Mobile Phone Back Cover Case With UV Texture Plus Electroplating Effect



IMD Printing product features:

How was this colorful battery cover with UV texture produced? First, there is a texture mold that presses a layer of UV texture onto the back of the PET film. In order to make the texture more obvious, it is necessary to electroplate the PET film. After electroplating, the brightness of the PET film becomes stronger and the texture becomes clearer. Then, usually the first printing process is to print the product logo, and the second printing process is to start printing the ink for the pattern, which can be either silk screen printing or color printing. Depending on the current demand for the product pattern, it is necessary to determine which printing method to use. After the pattern is printed, a further layer of glue needs to be printed on the bottom surface. The function of this layer of glue is to enable the PET membrane to blend well with the plastic during injection molding.



IMD Printing  product process:

1.Sheet cutting: cut a whole roll of sheet into small pieces

2.Pre-baking: the purpose is to eliminate the stress inside the sheet and make the sheet stretch

3.Printing: print different patterns on the diaphragm

4.Ink curing: curing the ink on the sheet to make the ink highly integrated with the sheet

5.Punching: punch holes in the diaphragm to fix the diaphragm for the next process

6.Cutting: cut the diaphragm into smaller pieces

7.Diaphragm forming: mold the diaphragm into product shape

9.Edge cutting and material removal: cut off the excess edge material

10.In-mold injection molding: put the molded diaphragm into the mold of the injection molding machine to inject plastic

11.Water outlet: remove excess plastic

12.Inspection and packaging:Conduct a comprehensive inspection on the finished products to confirm that the quality is qualified, and then pack them for shipment



IMD Printing product  customization process:

1. The customer provides IMD PARTS data, including the designed three-level diagram and ID effect diagram;

2. Evaluate and confirm the drawings;

3. Both parties sign the mold contract;

4. Pay the first payment of the mold;

5. Start mold production;

6. Proofing;

7. Confirm the sample;

8. Sign order contract;

9. Pay the first payment of the order and the last payment of the mold;

10. Production;

11. Deliver the goods and pay the balance of the order at the same time



Why choose us

We are the first professional IMD PARTS manufacturer in China,Founded in 2009, the company's industrial park covers an area of more than 30000 square meters, has a high-precision dust-free workshop, and has nearly 100 excellent management personnel, 35 engineering and technical personnel, 50 quality personnel, a total of nearly 500 employees, more than 500 injection molding equipment, and a monthly production capacity of nearly 15 million pieces; From engineering research and development to mold production, diaphragm printing, diaphragm molding, diaphragm injection molding, inspection and packaging, there is a complete process production process.

IMD Mobile Phone Back Cover Electroplating IMD Phone Case UV Texture 0



Full-process dust-free workshop operation

IMD Mobile Phone Back Cover Electroplating IMD Phone Case UV Texture 1



Full-process dust-free workshop operation

IMD Mobile Phone Back Cover Electroplating IMD Phone Case UV Texture 2



Our company has won the honors of high-growth enterprise, industry benchmark enterprise, contract-abiding and creditworthy enterprise, high-tech enterprise, etc

IMD Mobile Phone Back Cover Electroplating IMD Phone Case UV Texture 3



HXS has become a long-term partner of more than ten top 100 enterprises in the world

IMD Mobile Phone Back Cover Electroplating IMD Phone Case UV Texture 4



IMD Mobile Phone Back Cover Electroplating IMD Phone Case UV Texture 5
